FG Point Density Optimization

Just a quick note to help speed up hires renders that use FinalGather. The new method is easier to setup in maya 8 and 2008. Accuracy can now often be left at low levels like the default of 100 and still provide smooth results, but some things to keep in mind regarding the new method...

a point density of 1 relates to the default layout of FG points. These points are normally set in a hexagonal sort of layout (really just offset rows) every 10 pixels or so. The "Point Density" value adjusts this. The default value of 1 is usually a very fine starting place, and many may never have to change the Point Density value. However, as resolutions get larger, and much larger for print images, this can be detrimental. The number of FG points that are created is resolution dependent. The larger your image, the more FG points will be added (still every 10 pixels or so). This is normally a wise thing, as the larger you render, the more FG detail you should need.

In practice, however, you probably don't need all the FG point detail (Density) you did for your lowres tests. Something that is nice to know is the following relationship:

If you double your image size (from 640 to 1280 for example) you are squaring the number of FG points. 2x2... if you leave your density at 1. If you quarter the density to .25, you will exactly match the FG points used in your 640 render. Since the render is now larger, your FG solution will probably not be quite detailed enough. A nice compromise might be to set Point Density to .5 thereby doubling (but not squaring) your FG points. This could provide much faster FG performance for higher res renders.

1280 is not a very hires render, so this example may not provide very high quality... but it illustrates an optimization that can make a huge difference for print-res renders (if you're into that sort of thing). If I'm rendering a print res at 10x640 (or 6400 pixels wide), that's a LOT of FG points. I would plug .01 into density to match the same FG points used in my 640 test. This will obviously look poor, but the render would be very fast. Finding the right relationship may be a bit of trial and error, but there is certainly a medium number of points that will retain enough FG detail, and still allow for fast rendertimes. I might start a 6400 render at a density of .1 for a nice speed optimization.

Good luck.

Thursday, November 15, 2007

Universe = Doily?

Every once in a while, I'm bound to post things I'm interested in, that may not be about 3d lighting...

Given the nerd factor of anyone that might read this blog, I'm guessing no-one will be bothered much. My occasional off-topic posts (like this one) should still be of interest to said readers.

This guy, Garrett Lisi seems to have a basis for a unified theory of the universe that includes gravity, does not include 11+ dimensions, and in general has simplicity and elegance that say a certain fibourous, loopy theory does not. While this article isn't heavy on the science, it is inspiring!

Sunday, November 11, 2007

Portal Light: Part 2

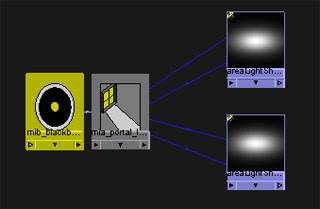

To continue my portal examples, I'll delve into it's real power. When you use mib_portal_light, you can also pipe something into its environment slot, if you want anything other than an efficient area light. A very basic example is mib_blackbody. Blackbody is a scientific term mental ray uses for color temperature. Below, blackbody is plugged into the environment slot of the portal_light.

The temperature settings are in Kelvin. Temp settings that should be familiar are 6500 (daylight) and 2800 (tungsten - incandescent).

6500 daylight

2800 tungsten

9300 tv screen

This is a good way to imitate photographic white balance differences, but most likely, you'll just want to make pretty images with white balance set to neutral or daylight. So another more interesting example, is to use the portal light in conjunction with the physical sun/sky system. You don't have to plug it directly into the portal. This will enable higher FG accuracy with fewer rays. Below is an example.

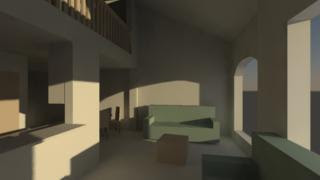

The portal light allows the entire environment both direct sun and indirect sky, to act as a soft direct light. Along with that, comes accurate area shadows as well as improved FG. The mental ray architecural docs have some great info about this and should be ingested if you want to take this further.

Portal Light: Part 1

So, I've been fiddling with the new Portal Light shader in Maya2008. Heard about it in the promo materials, and wanted to see what it did. Well, it's pretty useful. Here's the run-down:

mib_portal_light functions as a tool to focus FG rays. At it's most basic level, it can improve performance and quality for the age-old architectural lighting trick of placing area lights in windows. This trick has long been a way to imitate indirect soft lighting from window sources, in an otherwise dark room. Here is an example:

The above image uses 2 area lights scaled to the windows. Each has identical settings, as seen below. I also used a single bounce in my FG options.

So that is pretty traditional. The quality shown is low, so most users would push the FG quality up far beyond default (the above render is defualt FG settings btw). They might also use some FG filtering. Quickly your render tests will become coffee breaks with such wasted rays;)

So now for the portal light. in Maya2008, this is a light shader and should be connected to an area light. Here are the connections.

As shown, connect to both the Light shader and the Photon shader. If you plan to use GI, this is critical. We'll only really need the light shader, but do it anyway, cause it's only right;)

The portal_light now becomes the root of your light control. So I fiddled with the intensity multiplier (set to 5) to imitate the general look of my earlier area lights. The result is below. I've also reposted the original image below the new one, to compare.

You can see the original image has FG issues like discernible ray splotchiness. The new portal image cleans up these issues with roughly the same render time.

Now, what is really going on? The portalLight's greater function is not really being touched on in this tutorial. It is meant to be used in conjunction with an environment input, like physical sky/sun. This will be covered in another post. But here, the portalLight is left without an environment input, so it defaults to a white area light. It acts as a FG focus. normally, FG will send out lots of rays that will only occasionally see the windows. Portal Light can more efficiently focus those rays. In this basic setup, it highly reduces the amount of FG rays you need for a quality architectural render. Thus its value is great, even without going any further. But further we will go...
